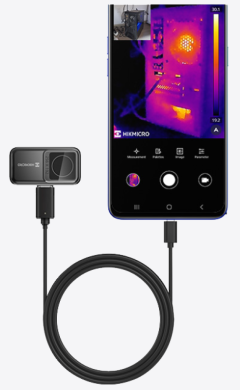

Hikmicro Mini2 V2 Smartphone Thermal Imager

Hikmicro Mini2 V2 Smartphone Thermal Imager

Product Code: HIKMINI2-V2

Price

£169.15 ex. VAT £202.98 inc. VAT

In Stock

Add To Favourites
Detailed Description

The Mini2 V2 is a fantastic choice for inspecting homes and troubleshooting HVAC problems. With its high thermal resolution, SuperIR image enhancement, and accurate temperature readings, you can easily identify areas of concern and make informed decisions. Being compatible with both iOS and Android devices adds to its convenience, making it a reliable tool for thermal imaging on the go. Whether you're a homeowner or a professional, the Mini2 V2 is a versatile smartphone thermal camera that can assist you in various thermal imaging tasks.

HIKMini2 V2_Datasheet.pdf

Key Features:

Thermal resolution: 256 × 192 (49,152 pixels)
SuperIR image enhancement technology on live view and captured images
3-in-1: USB-C (iOS & Android), Lightning (Includes a Lightning to USB-C adapter)
NETD: ＜40 mK (@ 25 °C, F#=1.0)
Accuracy: ± 2 °C (-20 °C to 100 °C) ; ± 2 % (100 °C to 400 °C)
20 g Weight

Technical Specification:

	Mini2 V2	Mini2Plus V2
IR Resolution	256 x 192 (49,152 pixels)
NETD	< 40 mK (@ 25 °C, F#=1.0)
Image Frequency	25 Hz
Detector Pitch	12 μm
Spectral Range	7.5 to 14 μm
Focal Length	3.5 mm	6.9 mm
F-number	F1.0
Field of View (FOV)	50° X 37.2°	25° X 18.8°
Focus Mode	Focus Free	Manual Focus
SuperIR	Yes, on captured images and live view
Min. Focus Distance	0.2 m (0.66 ft)	0.1 m (0.33 ft)
Image Display	Thermal, PIP	Thermal, Visual (with the phone camera)
Image Modes	White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined
Object Temperature Range	-20°C to 400°C (-4°F to 752°F)
Accuracy	Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Measurement Tools	Center Spot, Hot Spot, Cold Spot User-definable: 3 spots, 3 rectangles and 1 line
Level and Span Mode	Auto/Manual
Power Consumption	360 mW
Protection Level	IP40
Drop Test Height	1 m (3.28 ft)
Working Temperature Range	-10°C to 50°C (14°F to 122°F)
Storage Temperature Range	-20°C to 60°C (-4°F to 140°F)
Weight	Approx. 20 g (0.044 lb)	Approx. 24 g (0.053 lb)
Dimension	42 X 22.5 X 11.2 mm (1.65 X 0.89 X 0.44 in)	26.6 X 26.6 X 25 mm (1.05 X 1.05 X 0.98 in)
Interface	USB-C Android, USB-C iOS, Lightning iOS (Includes a Lightning to USB-C adapter)
Device Compatibility	iOS (version 14 and later), Android (version 7 and later) smartphones and tablets, or Windows devices
Software Compatibility	HIKMICRO Viewer app for iOS and Android, HIKMICRO Analyzer software for Windows
