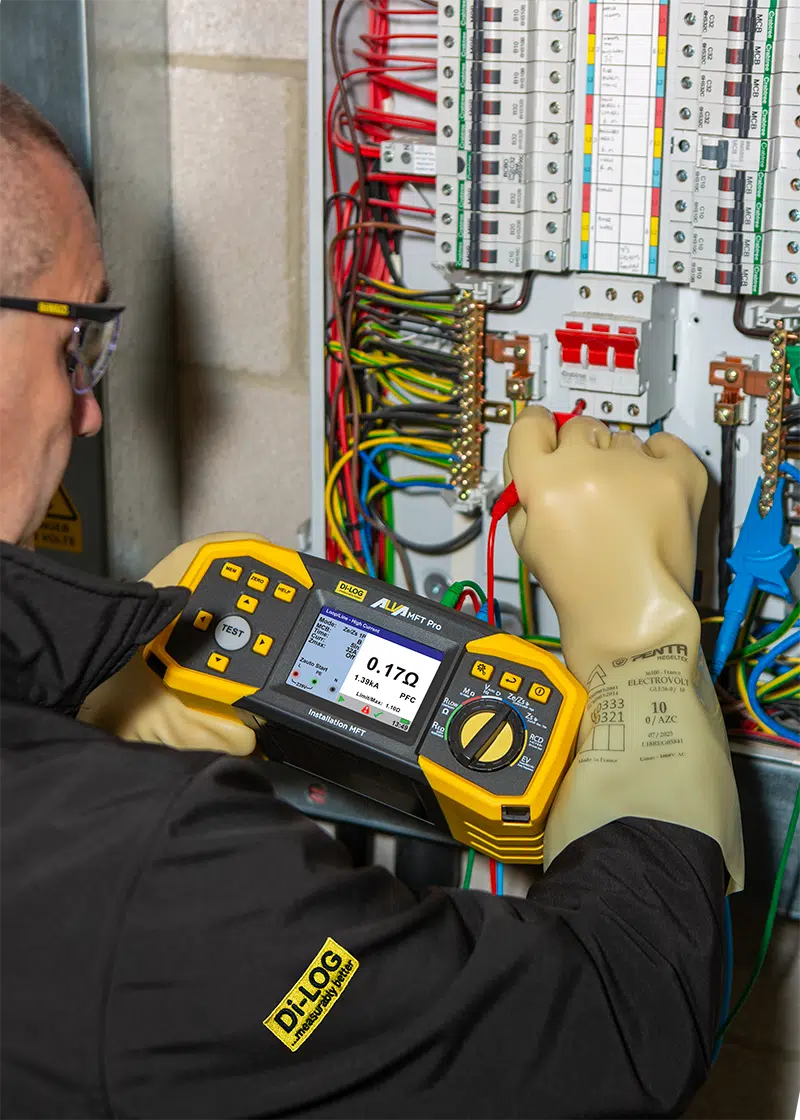

Di-Log Alva Advanced Multifunction Tester with EV Testing

Di-Log Alva Advanced Multifunction Tester with EV Testing

Product Code: DILALVAMFTEV

Price
£874.00 ex. VAT £1048.80 inc. VAT

In Stock


Add To Favourites
Detailed Description

Complete EV Testing Solution

The Di-LOG ALVA EV Installation Multifunction Tester Kit combines the trusted accuracy of the ALVA Multifunction Tester (MFT) with the targeted EV capabilities of the DLEVLite Type 1 EVSE Adaptor, delivering a compact, high-performance solution for electric vehicle charge point testing. Ideal for contractors and EV specialists, this kit enables fast, reliable, and fully compliant testing of Mode 3 EV installations in line with 18th Edition requirements.

Paired with the Di-LOG DLEVLite adaptor, the ALVA MFT EV kit allows electricians to simulate a vehicle connection at Type 1 EVSE sockets, verifying Control Pilot (CP) signal integrity, Protective Earth (PE) continuity, and simulating fault conditions such as CP Error E or PE loss. Lightweight and easy to deploy, the adaptor adds flexibility and functionality to on-site testing, making it a must-have for EV charger commissioning and troubleshooting. Engineered for speed, simplicity, and full regulatory compliance, the ALVA MFT EV kit delivers powerful all-in-one functionality for modern electrical professionals.

Upgrade your testing experience with the Di-LOG ALVA MFT EV—precision, reliability, and compliance in one powerful device.

At the heart of the kit is the Di-LOG ALVA MFT, a next-generation multifunction tester fully compliant with BS EN 61557. It features a high-resolution full-colour TFT screen, user-interactive pass/fail limit setting, and testing support for RCD types AC, A, B, B+, EV and F. With automated Continuity & Earth Loop Auto Start, a dual display, and intelligent 2/3 wire loop detection, it simplifies daily testing routines with greater speed and precision.

The MFT also includes a variable RDC test feature and 6mA RDC-PD/MD testing, enabling effective verification of EVSE charger safety. Inbuilt fuse tables provide immediate access to the maximum permitted Zs Loop values—essential for ensuring safe Earth Loop Impedance measurements in real-world installations.

Di-LOG ALVA EV Installation Multifunction Tester Kit Key Features

  • Full-Colour TFT Display: Provides a high-contrast screen with interactive pass/fail settings for enhanced user experience.
  • Comprehensive RCD Testing: Supports AC, A, B, B+, EV, and F types, ensuring compatibility with a wide range of installations, including EV charge points.
  • Automated Continuity & Earth Loop Auto Start: Simplifies testing with a secondary display for recorded results, improving efficiency
  • Advanced Loop Testing with Intelligent Detection & Xpert Loop Technology: The ALVA MFT Pro EV features Intelligent 2/3 Wire High-Current Loop Detection, which automatically identifies whether a 2-wire or 3-wire Loop/PSCC measurement is being conducted, eliminating manual selection errors. Combined with RCD-LOC+ Dynamic Non-Trip Loop Testing, this latest Xpert Loop Technology delivers high-accuracy low-current Earth Loop measurements with an adjustable test current feature, optimising test precision based on your RCD current. This ensures reliable loop impedance testing while maintaining maximum safety and accuracy in all environments.
  • Insulation Test with Bargraph: with selectable voltages of 50, 100V, 250V, 500V & 1000V with adjustable pass/fail values
  • 6mA EVSE Testing: Simple EV Charger Safety Verification with a 6mA RDC-PD/MD Testing as standard
  • Integrated DLEVLite Charge Point Adaptor: Enables full functional testing of Mode 3 EV charging stations, ensuring charge point performance and safety.
  • Control Pilot & Protective Earth Testing: DLEVLite Verifies Control Pilot (CP) status, detects CP Error “E” for added safety in EV charger installations.
  • Rechargeable Capability (Optional Kit Required): The ALVA MFT includes an inbuilt charging facility when used with the optional NiMH battery and charge lead kit, allowing convenient charging and longer operation without regular battery changes.
  • On-screen Help: a visual aid to assist test lead configuration and instruction

Technical Specifications

ALVA MFT Specifications

Measurement Range

Resolution

Basic Accuracy

Voltage & Frequency
AC Voltage TRMS
0V - 550V		 1V ±2% ± 2 dgts
DC Voltage
0V - 550V		 1V ±2% ± 2 dgts
Frequency
10 - 499Hz		 0.1Hz ±0.2% ± 1 dgts

Phase Rotation
0V - 550V
Measurement range BS EN 61557-7
 Right:1-2-3 ; Left: 3-2-1

Continuity
Low R (200mA) 0.01Ω - 19.99Ω
20.1Ω - 99.9Ω
100Ω - 1999Ω		 ±3% ± 3 dgts
±5% ± 5 dgts
±5% ± 5 dgts

Insulation
50V, 100V & 250V
(50kΩ-80MΩ @ 50V | 100kΩ-199.9MΩ @ 100V & 250V)
 <0.01MΩ - 19.999MΩ
19.99MΩ - 99.99MΩ
20.0MΩ - >199.9MΩ		 ±5% ± 3 dgts

±5% ± 3 dgts

±5% ± 5 dgts
500V & 1000V
(500kΩ-199.9MΩ @ 500 & 1000V)
 <0.01MΩ - 19.999MΩ
19.99MΩ - 99.99MΩ
20.0MΩ - >199.9MΩ
200MΩ - >999MΩ		 ±5% ± 3 dgts

±5% ± 3 dgts

±5% ± 5 dgts

±10%

Line Impedance (L-L | L-N)
0.20Ω - 9999Ω
Measurement range BS EN 61557-3 is 0.25Ω - 1999Ω
 0.01Ω - 19.99Ω
20.0Ω - 99.9Ω
100Ω - 9999Ω		 ±5% ± 5 dgts

Perspective Short Circuit Current (PSC)
0.00A - 19.99A
20.0A - 99.9A
100A - 999A
1.00kA - 9.99kA
10.0kA - 100.0kA		 0.01A
0.1A
1A
0.01kA
0.1kA		 Calculated value taking into account the Earth Loop Accuracy of ±5% ± 5 dgts

Earth Fault Loop Impedance (Z-loop L-PE High Current)
0.20Ω - 9999Ω
Measurement range BS EN 61557-3 is 0.25Ω - 1999Ω
 0.01Ω - 19.99Ω
20.0Ω - 99.9Ω
100Ω - 9999Ω		 ±5% ± 5 dgts

Perspective Earth Fault Current (PFC - High Current)
0.00A - 19.99A
20.0A - 99.9A
100A - 999A
1.00kA - 9.99kA
10.0kA - 100.0kA		 0.01A
0.1A
1A
0.01kA
0.1kA		 Calculated value taking into account the Earth Loop Accuracy of ±5% ± 5 dgts

Earth Fault Loop Impedance (Z-Loop (Zs) Non-Trip)
0.40Ω - 19.99Ω
20.0Ω - 9999Ω
Measurement range BS EN 61557 is 0.75Ω - 1999Ω
 0.01Ω - 19.99Ω
20.0Ω - 99.9Ω
100Ω - 9999Ω		 ±5% ± 10 dgts
±10%

Perspective Earth Fault Current (PFC-Non-Trip)
0.00A - 19.99A
20.0A - 99.9A
100A - 999A
1.00kA - 9.99kA
10.0kA - 100.0kA		 0.01A
0.1A
1A
0.01kA
0.1kA		 Calculated value taking into account the Earth Loop Accuracy of ±5% ± 5 dgts

RCD Tripping Time
0.0 - 500.0ms
(Measurement range BS EN 61557-6)
 0.1ms ±3ms
Test Current - ½ x I∆n | 1 x I∆n | 2x I∆n | 5 x I∆n
RCD Types- AC | A | B | B+ | EV | F | S (Selective - Time Delayed)

RCD Tripping Current
0.0 - 500.0ms
(Measurement range BS EN 61557-6)
 0.1ms ±3ms
0.2 x IΔn - 1.1 IΔn (AC type)
0.2 x IΔn - 1.5 IΔn (A type, IΔn ≧30mA )
0.2 x IΔn - 2.2 IΔn (A type, IΔn ≧10mA )
0.2 x IΔn - 2.2 IΔn (B type)		 0.05 x IΔn ±0.1 x IΔn
Nominal RCD Currents- 6mA | 10mA | 30mA | 100mA | 300mA | 500mA

Contact Voltage
3.0V - 9.9V
10.0V - 99.9V		 0.1V -0/+10% ±10 dgts

General Information
EN61010 Overvoltage Safety Rating CAT III 600V CAT IV 300V
Display 480 x 320 TFT LCD Screen
Power supply 6 x AA Alkaline batteries (included)
Recharge Option ALVA Recharge Pack A available
Dimensions 250 x 107 x 135 mm
Weight 1300g (Excluding batteries)
