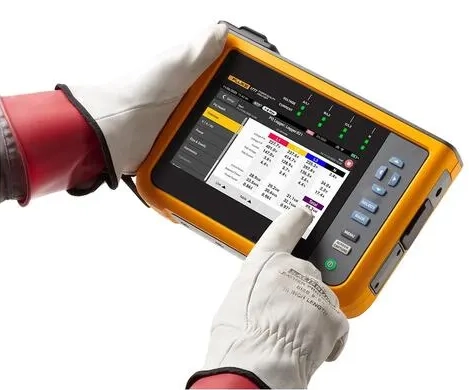

Fluke 1773 Three-Phase Power Quality Analyzer 5117269

Fluke 1773 Three-Phase Power Quality Analyzer 5117269

Product Code: FLU1773

Price
£4945.00 ex. VAT £5934.00 inc. VAT

In Stock


Add To Favourites
Detailed Description

Fluke 1770 Series Three-Phase Power Quality Analyzers eliminate the complexities of power quality logging, troubleshooting, and analysis. Engineered to be the faster, easier way to perform power quality studies, the 1770 Series offers automatic measurements, a straightforward user interface and setup, bestin-class specifications, and a simplified reporting platform. The instrument can also be powered directly from the measurement circuit, eliminating the need to find a power outlet or use a lengthy extension cord. With the 1770 Series you’ll never miss a critical power quality event—from fast transients up to 8 kV (Fluke 1775 and 1777 only), dips and swells, as well as the voltage, current, and power measurements that enable you to characterize your electrical system.

Packaging Includes:

  • FLUKE-1773 Power Quality Analyzer
  • I17XX-FLEX1500 18 iFLEX 1500A 18 IN (2.0M) current probes (set of four)
  • FLUKE-17XX flat cable voltage test lead 3-phase+N
  • AC285 black alligator clips (set of four)
  • AC285 green alligator clip
  • Black 1M USB-C cable
  • Line cords (US, EU, UK, AUS, BRA)
  • FLK-17XX 0.18M test lead set
  • Green test lead
  • Cable marker set (for voltage and current)
  • FLUKE-174X-MA-C8 wall outlet adapter

*For full technical specification please see the attached documentation in the 'Product Downloads' tab above.

Fluke 177x Series Comparison Chart

  1773 1775 1777
Max input voltage rms
1000Vac/1500Vdc		 ✔ ✔ ✔
Voltage Channels / Amp
Channels		 5/4 5/4 5/4
Flex 150/1500A 12” 4x ✔ ✔ ✔
PQ Health (EN 50160) ✔ ✔ ✔
DC voltage, DC current
(with optional clamps)		 ✔ ✔ ✔
Live Scope/Phasor Diagram ✔ ✔ ✔
Live Reading Trending ✔ ✔ ✔
Internal Storage Memory
(External SD Slot)		 8GB
(32GB
available)		 8GB
(32GB
available)		 8GB
(32GB
available)
Battery (swappable) 1hr 1hr 1hr
Transients 20 MHz 8kV (Volt
only)		 ✖ 1MHz
sampling		 20MHz
sampling
Event List ✔ ✔ ✔
RMS profile capture and
Waveform data		 ✖ ✔ ✔
Input 2x ac+dc 10V **** ✔ ✔ ✔
IEC 61000-4-30 Class A Ed. 4 (Unreleased) Engineered to meet future Class
A Ed. 4 requirements
Harmonics 2-9 kHz (Volt and Amp) ✔ ✔ ✔
Harmonics to 30kHz ✔ ✔ ✔
Interval 200ms rms 3s
Harm.		 ✔ ✔ ✔
Display 7” Touch ✔ ✔ ✔
Ethernet/WiFi (2x)/BLE

✔

(Wi-Fi optional)

 ✔ ✔
Automatically powers from
measurement line		 ✔ ✔ ✔
Connection verification and
autocorrection		 ✔ ✔ ✔

Fluke 1773 Technical Specifications

Voltage inputs
Number of inputs 4 inputs, 3 phases and neutral referenced to PE (5 connectors)
Measurement category 1000 V CAT III / 600 V CAT IV
Maximum input voltage 1000 V rms / 1000 V dc (1700 Vpk)
Nominal voltage range Wye and single phase: variable (50 V – 1000 V)
Delta: Variable (100 V – 1000 V)
IEC 61000-4-30 Class A compliance for the nominal voltages (Vdin) 100 V – 690 V
Input impedance 10 MΩ between P-P and P-N, 5 MΩ between P-PE and N-PE
Bandwidth DC to 30 kHz for PQ measurements, excluding transients
Resolution 24-bit synchronous sampling
Sampling frequency 80 kS/s at 50/60 Hz
Scaling 1:1, variable for use of potential transformers
Voltage transients
Measurement range ±8 kV
Sampling rate 1775: 1 MS/s
  1777: 1 MS/s, 20 MS/s
Bandwidth DC to 1 MHz
Trigger Adjustable trigger level. Triggers on high-frequency components > 1.5 kHz
Resolution 14-bit synchronous sampling
Current inputs
Number of inputs 4 inputs 3 phases and Neutral, range selected automatically to attached sensor
Range AC 1 A to 1500 A with i17XX-FLEX1500 12
1 A to 1500 A with i17XX-FLEX1500 24
3 A to 3000 A with i17XX-FLEX3000 24
6 A to 6000 A with i17XX-FLEX6000 36
40 mA to 40 A with clamp i40s-EL
4 A to 400 A with clamp i400s-EL
DC 20 A to 2000 A with 80i-2010-EL clamp
Bandwidth DC to 30 kHz
Resolution 24-bit synchronous sampling
Sampling frequency 80 kS/s at 50/60 Hz
Scaling 1:1, variable
Input voltage Clamp: 50 mV / 500 mV rms; CF 2.8
Rogowski Coil: 15 mV / 150 mV rms at 50 Hz, 18 mV / 180 mV rms at 60 Hz; CF 4 all at
nominal probe range
Input impedance 11 kΩ
