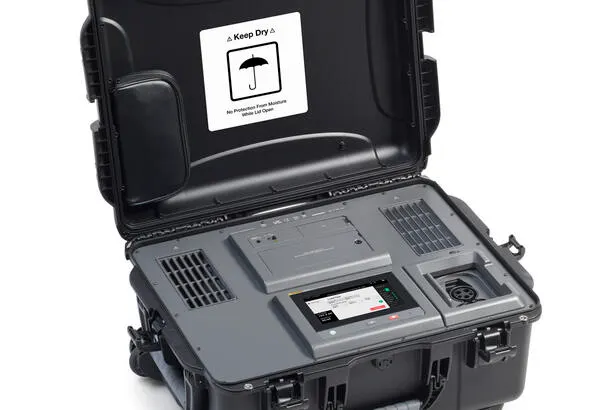

Fluke FEV500-CCS2 Fast DC Charging Station Analyzer CCS2 6008411

ALL-IN-ONE FAST DC TESTING
Combines performance, interoperability and safety measurement features into a single, portable device, no need for multiple tools or complex setups.

BUILT-IN EV SIMULATION
Simulates real EV charging up to 2kW. No external load banks or vehicles required, enabling complete station validation anytime, anywhere.

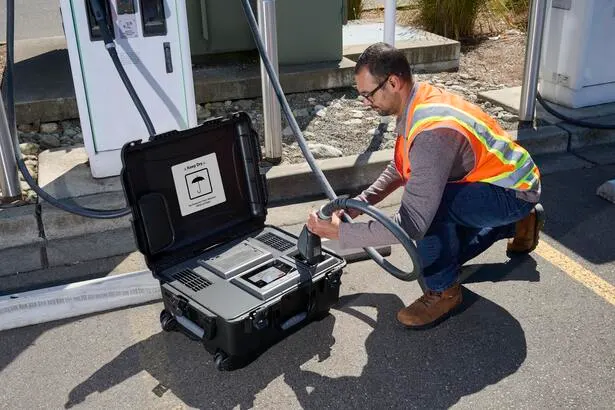

RUGGED, FIELD-READY DESIGN FEV500
Engineered for durability and portability with integrated wheels and handle, ideal for demanding on-site testing. The battery is removable for easy airline transport.

VIEW REAL-TIME REPORTS ON THE FEV500
Seamless integration with Fluke TruTest™ software for instant documentation, compliance reporting, and actionable maintenance insights.

BATTERY-POWERED FOR TRUE MOBILITY
No wall outlet required. The battery recharges via energy harvesting during EVSE load tests for extended field use.

Key Features:

• Comprehensive Testing: Performance and safety testing combined in one device.
• EV Simulation, No External Equipment Needed: Simulates electric vehicle charging during testing, eliminating the need for additional load banks, electric vehicles or multifunction testers. Verifies charging station operability and performance by simulating a kW load to mimic real charging sessions.
• Autotest Feature: Run pre-configured test sequences with automatic execution and clear pass/fail results. No need to use other equipment or reconfigure test leads.
• User-Friendly Interface: Intuitive touchscreen display visible in bright sunlight with guided workflows and for easy operation and interpretation of results.
• CCS Connectivity: Supports CCS connectors for widespread compatibility. Available in CCS1 or CCS2 models.
• Portable and Durable: Rugged design ideal for field use, with a removable, rechargeable battery, no outlet required.
• Automatic Data Management: Tracks and stores unique EVSE and connection point IDs for streamlined asset management.
• TruTest™ Software: Facilitates documentation and reporting of results.

Performance and Safety Tests:

Communication & Performance:

• CCS Charge State Verification
• Signal Level Attenuation Characterization (SLAC)
• Low-Level Communication Testing for CCS
• Power Line Communication (PLC) Testing
• Load Testing (Voltage & Current during simulated charging)

Electrical Safety:

• Insulation Resistance (IEC 61557-2)
• Low Impedance Measurement (IEC 61557-4)
• IMD Test (Insulation Monitoring Device, IEC 61557-8)
• Residual Voltage Measurement (IEC 61851-1)

Streamline Fast DC EV Charging inspections using one integrated tool

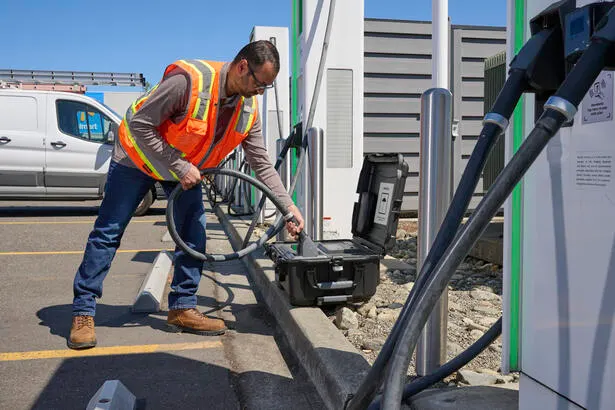

Other EVSE test tools often only support vehicle simulation and require other test equipment to perform a full inspection. This requires reconfiguration of test leads and the need to bring multiple devices on-site. Managing multiple devices can lead to inefficiencies, increased test time and higher likelihood of human error. The FEV500 consolidates all recommended electrical inspection steps into a single portable device. Technicians can test continuity, insulation, check IMDs (insulation monitoring devices), and residual voltage all through the EVSE connector without the need to use other devices.

EVSE Validation: Independent, Precise Testing Without an EV On-Site
As electric vehicles become the norm, ensuring the reliability and performance of EV charging infrastructure is more critical than ever. Traditional validation methods often rely on the presence of an actual EV, which can limit flexibility and delay testing—especially in remote areas or during maintenance windows. The Fluke FEV500 empowers technicians with a smarter approach: it simulates an EV, enabling comprehensive testing of charging and communication protocols without needing a vehicle on-site. This independence streamlines workflows, reduces downtime, and allows for repeatable diagnostics under controlled conditions. Technicians can replicate specific charging scenarios, verify protocol compliance, and troubleshoot issues with precision—anytime, anywhere. By decoupling EVSE validation from vehicle availability, the FEV500 supports proactive infrastructure readiness for a fully electric future.

Simplify Every Step of Fast DC Charger Testing
The Fluke FEV500 streamlines Fast DC EVSE testing by combining safety, performance, and interoperability checks into one compact, field-ready tool. Its guided testing workflow walks technicians step-by-step through each protocol, ensuring consistency, confidence, and faster results, no matter what their experience level is. The FEV500 delivers EV-free validation, simulating real charging sessions and communication without needing a vehicle on-site, while error simulation verifies that safety systems respond correctly to faults. Designed for the field, it is portable, durable, and battery operated, with wheels and a handle for easy transport and no need for external power. The analyzer also consolidates multiple instruments— EV, protocol analyzer, low-ohm meter and oscilloscope —into a single device for complete non-invasive testing without opening the charger. Test data is automatically captured and transferred to TruTest™ software, eliminating manual entry and simplifying documentation for compliance and reporting. With the FEV500, technicians can test smarter, safer, and faster, anywhere the job takes them.

Technical Specification
